Qualer added additional variables that reference readings from the measurement form.

  • @Reading1 (Also @R1)
  • @Reading2  (Also @R2)
  • @Reading3 (Also @R3)
  • ...
  • @Reading[Index] (Also @R[Index])


Quick Guide to Using These Variables in Custom Fields

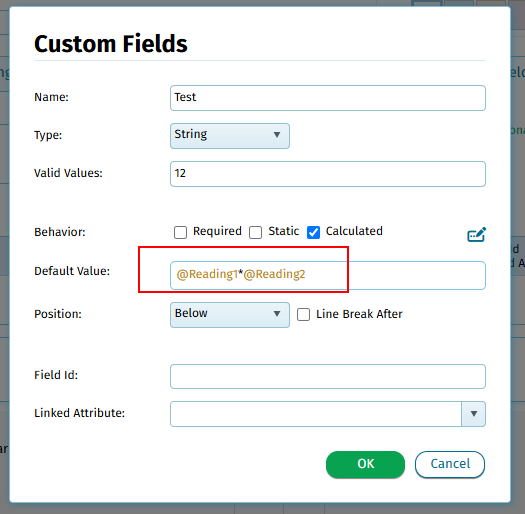

  • Go to Administration > Service Capability > Measurement Forms > Measurement Parameter Name > Custom Field.
  • Enter the custom field name in the "Name"
  • Select the field type from the "Type" drop-down: (Example: String).
  • Create a calculation in the "Default Value" field: (Example: @Reading1*@Reading2)
  • Select the "Calculated" checkbox.
  • Enter the field identifier in the "Field ID"
  • Choose the position from the "Position"
  • Select the "Line Break After" checkbox.

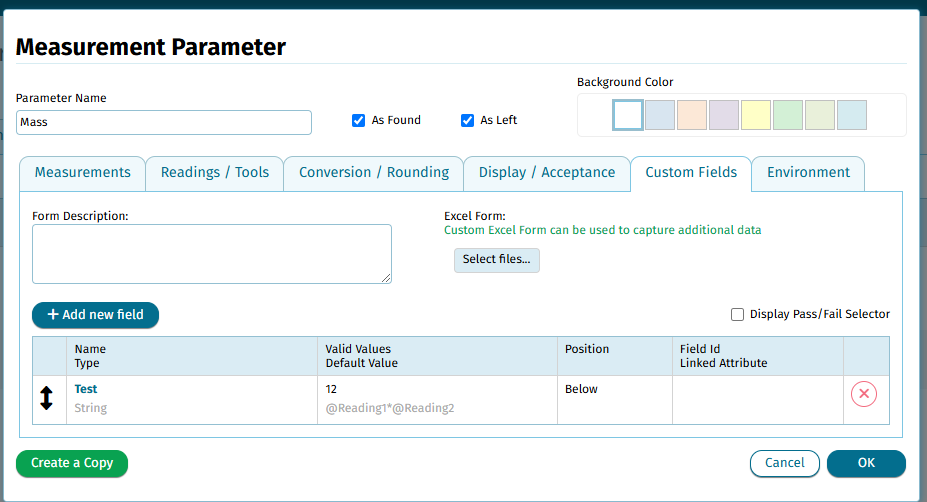

The custom field can now utilize readings for additional calculations and, when used with the Pass/Fail custom field type, can affect the Pass/Fail result.
